Need help on my CR!!!

[MarctheSharc]

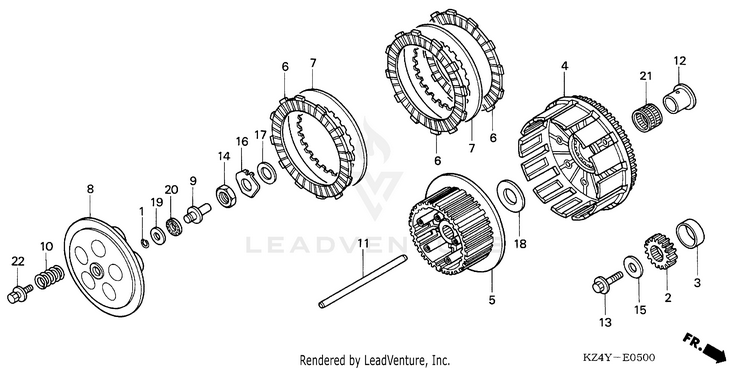

2004 CR 125 Fiche -



[Toddco327]

I’m at a loss.

Sharc thank you so much and that’s the conclusion we’ve came up with. Really appreciate all the help from everyone.

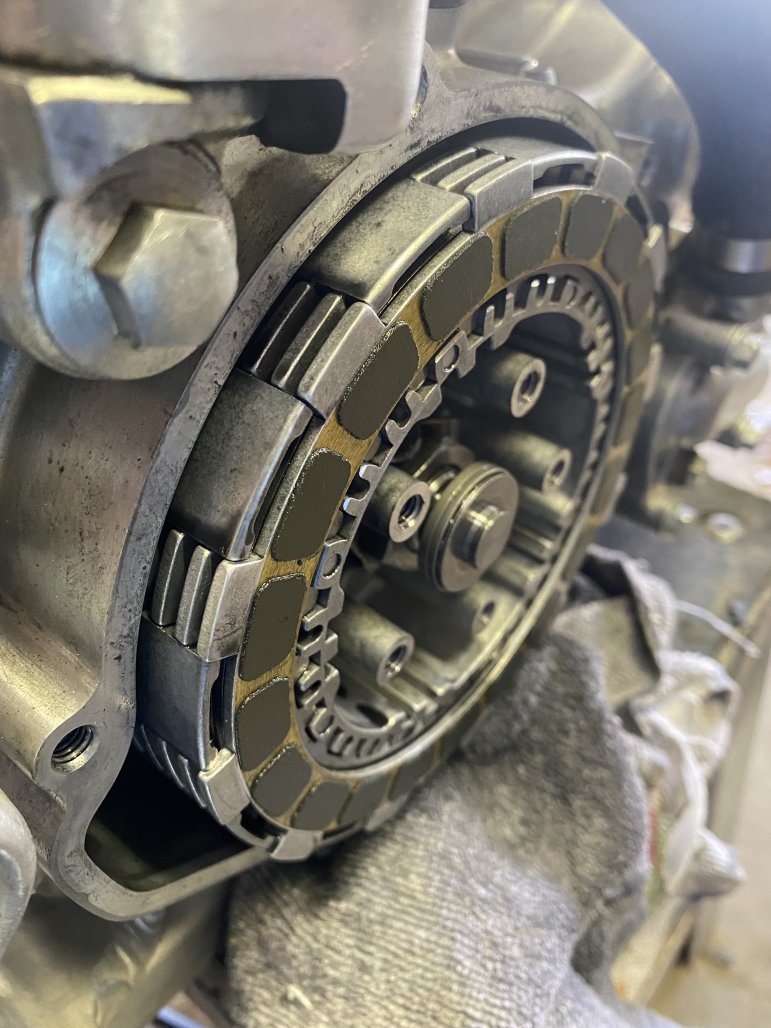

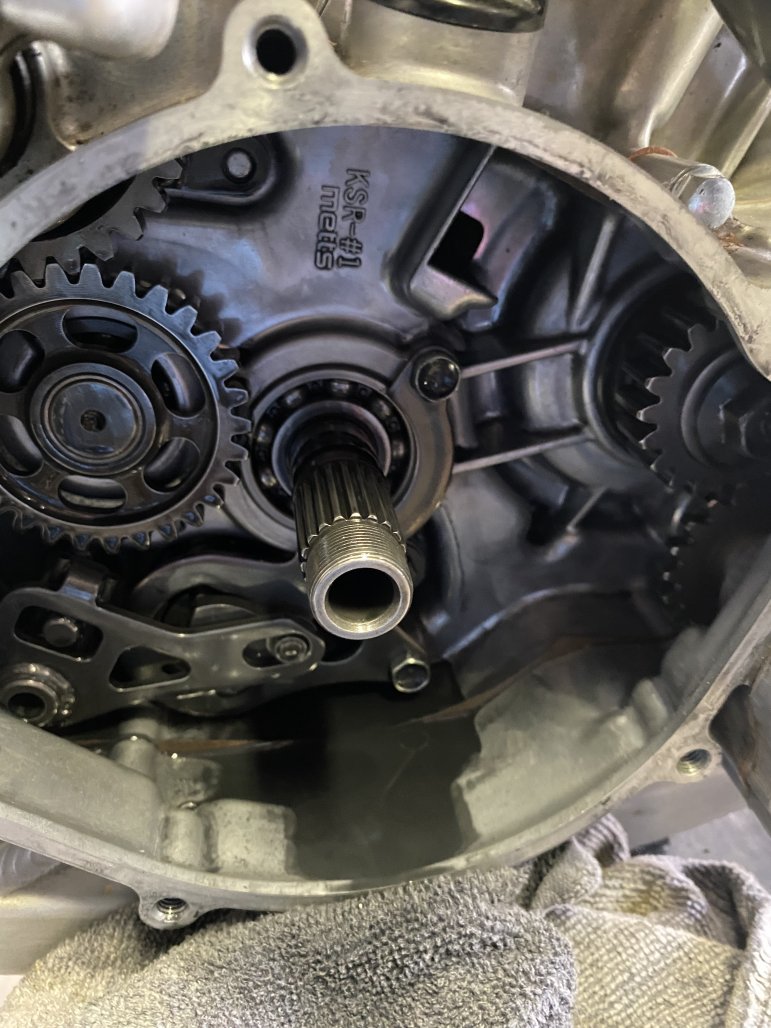

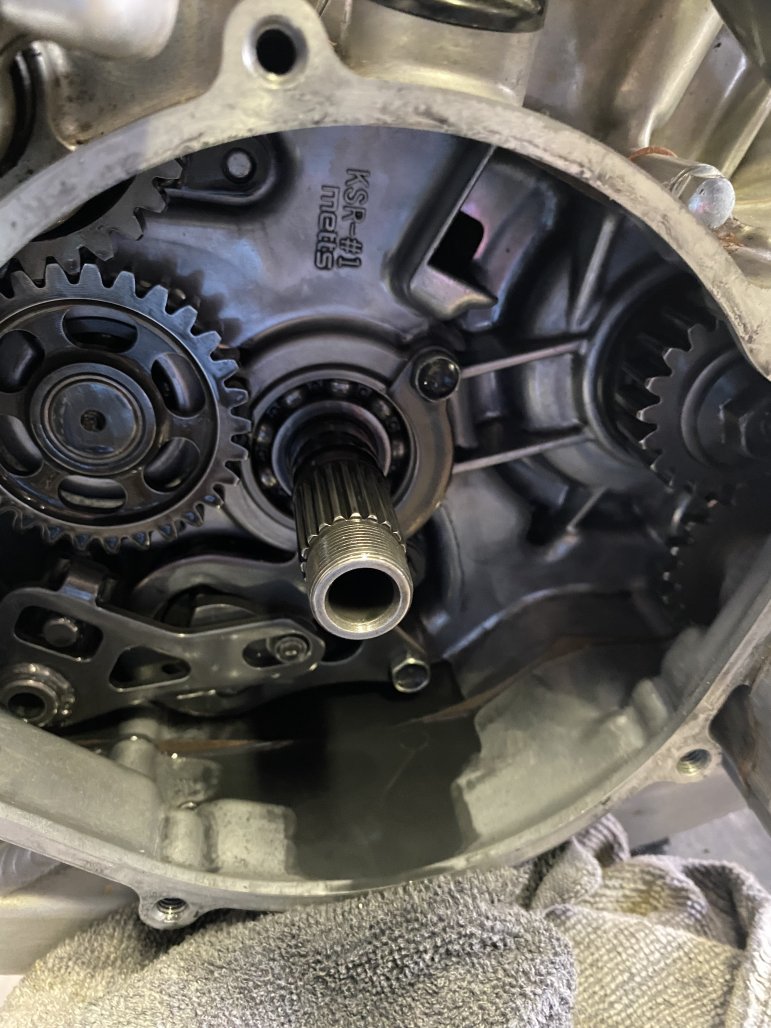

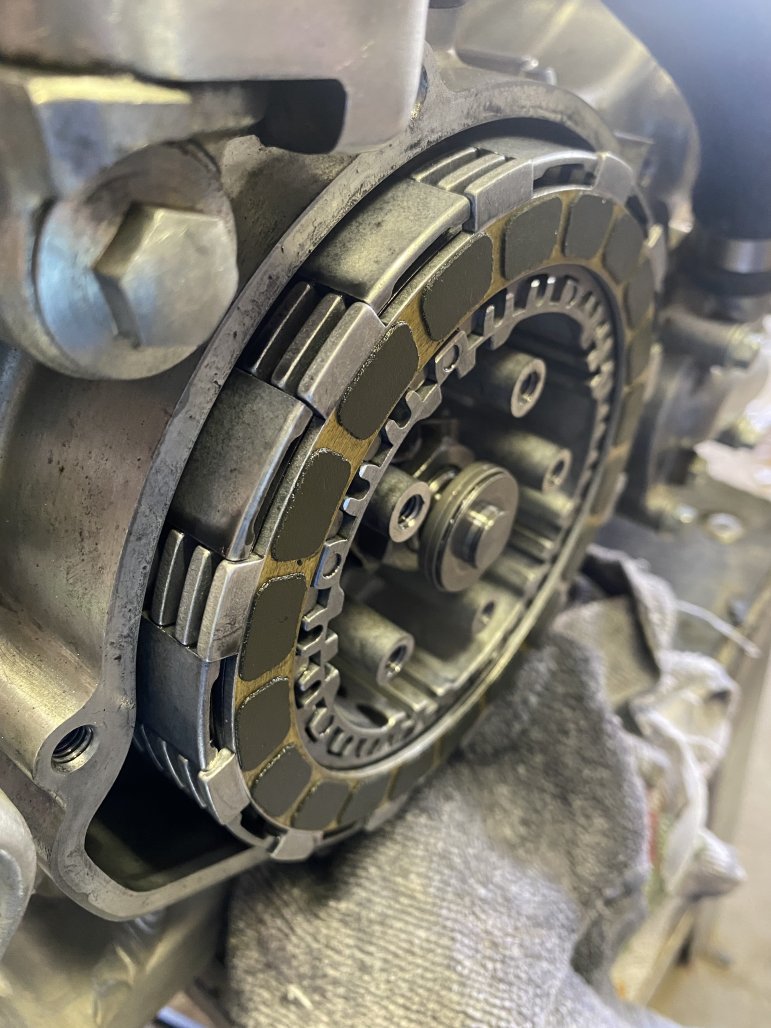

I took apart the entire clutch. Basket and all. Put it all back together. Everything seems correct. Nothing out of place

Also I started with a metal ring then fiber. And ended with a fiber one. Based off what I read that’s how it goes. 7 metal 7 fiber.

Measured the pushrod and it’s 7 1/4” which seems to be the standard.

Also mic’d the plates and they are 3.0mm for the fiber and 1.4 for the metal.



[MarctheSharc]

You have the basket, then you start with a fiber. Then metal, then fiber. Building the stack to end up with ther fiber at the very end. That will be the one that will apply friction to thr pressure plate



[MarctheSharc]

How do you know it’s not separating far enough? Have you had the engine together and running and try to articulate the clutch and it doesn’t work?



[Toddco327]

You have the basket, then you start with a fiber. Then metal, then fiber. Building the stack to end up with ther fiber at the very end. That will be the one that will apply friction to thr pressure plate

This could be it!!!!!!
Will report back



[TwentyThreeMX]

also some had thicker fibers for the 2 outter plates. not sure if honda did that or not, and im too lazy to go lookup part numbers right now to see if 2 fibers are different, but maybe check that lol



[beenridin]

Seen one ball you seen them all



[Toddco327]

WINNER!!!!!!!!!!!! We are in business. One to many metal plates. It’s perfect.

I’m extremely disappointed in myself on this. Something simple. But I assumed what was in there was correct. I guess you never assume



[Toddco327]

Thank you everyone for your help!!!



[Vet261]

Glad you figured it out!

Rule #1 on older bikes:
Never believe the person you got it from put things together correctly.

Rule #2:
Rule #1 especially applies if they tell you it's "race ready" LOL.



[TwentyThreeMX]

I’m disappointed In u too. Robin probably woulda figured it out shoulda just asked her.



[Toddco327]

I’m disappointed In u too. Robin probably woulda figured it out shoulda just asked her.

She’s just happy that I’m done complaining that I couldn’t figure it out. I should have asked her tho. Shes much smarter than me.

Sharc thanks so much.



[MarctheSharc]

Glad you got it figured out !!
“Race Ready” is an acronym for - take me apart because the last goon had no clue -

It’s an inside joke between Vet & I.
I bought a “race ready” bike once.
I spent more $ on rebuilding than I spent to purchase it.



[Vet261]

I've gotten burned by "race ready" too, was scrambling at Gatorback in Florida one year because of that!



[MotoDad17]

So ...No Balls?
